The Ultimate Guide To Deck Framing

Building a deck can transform your outdoor space into a functional and aesthetically pleasing area for relaxation and entertainment. However, before you start laying the decking boards, it is crucial to get the framing right. The frame is the backbone of your deck, ensuring its stability and longevity.

This professional guide will walk you through everything you need to know about deck framing, from:

• Planning
• Materials
• Step-by-step construction instructions

Whether you’re a seasoned DIY enthusiast or a homeowner looking to take on your first big project, this guide will equip you with the knowledge you need to frame your deck like a pro.

Why Deck Framing Matters

Deck framing may not be the most glamorous part of deck building, but it is undoubtedly the most important. Proper framing ensures the structural integrity of your deck, preventing it from sagging or collapsing under weight. A well-framed deck will also be level and square, making the installation of decking boards much easier.

⭐️ Benefits of Proper Deck Framing

• Safety: Ensures the deck can support the intended load safely.
• Durability: Increases the lifespan of your deck by preventing structural issues.
• Aesthetics: Provides a level and even surface for decking boards, enhancing the overall look of the deck.
• Compliance: Meets building codes and regulations, which is essential for legal and insurance purposes.

Planning Your Deck

Before you start cutting wood and driving nails, thorough planning is essential. This step involves designing your deck, obtaining necessary permits, and selecting the right materials.

Design Considerations

When designing your deck, consider factors such as size, shape, and location. Think about how you plan to use the space and whether you need features like stairs, railings, or built-in seating.

• Size: Determine the dimensions of your deck based on the available space and your intended use.
• Shape: Decide on the shape that best complements your home and landscape.
• Location: Choose a location that offers easy access from your home, good sunlight, and drainage.
• Features: Plan for additional features such as stairs, railings, and built-in seating.

Obtaining Permits

Most local building codes require permits for deck construction. Check with your local building department to understand the requirements and obtain the necessary permits before starting your project.

Selecting Materials

Choosing the right materials is crucial for the longevity and appearance of your deck. The main components of deck framing include posts, beams, joists, and hardware.

• Posts: Typically made from pressure-treated lumber to resist decay and insects.
• Beams: Support the joists and distribute weight to the posts.
• Joists: Horizontal supports that hold up the decking boards.
• Hardware: Includes screws, bolts, brackets, and connectors.

Tools and Materials Needed

Having the right tools and materials on hand will make your deck framing project smoother and more efficient. Here is a list of essentials:

Tools

• Tape measure
• Carpenter’s square
• Level
• Circular saw
• Miter saw
• Power drill
• Impact driver
• Hammer
• Post hole digger
• Shovel
• Safety gear (gloves, goggles, hearing protection)

Materials

• Pressure-treated lumber (posts, beams, joists)
• Concrete mix (for footings)
• Galvanized screws and nails
• Joist hangers
• Post anchors
• Decking boards
• Finishing materials (sealant, stain, paint)

9 Step Guide to Deck Framing

Now that you have your design, permits, and materials ready, it’s time to start building. Follow these steps to frame your deck:

Step 1: Laying Out the Deck

Start by marking the location of your deck on the ground. Use stakes and string to outline the perimeter and ensure it is square and level.

• Mark the Perimeter: Drive stakes into the ground at the corners of your deck and run string between them.
• Check for Square: Use the 3-4-5 method or a carpenter’s square to ensure the corners are at 90-degree angles.
• Adjust as Needed: Make any necessary adjustments to ensure the layout is accurate and level.

Step 2: Installing Footings

Footings provide a solid foundation for your deck by transferring the weight to the ground. The size and depth of footings will depend on local building codes and soil conditions.

• Dig Holes: Use a post hole digger or auger to dig holes for the footings. They should be below the frost line and at least 12 inches in diameter.
• Pour Concrete: Mix and pour concrete into the holes, filling them to the top. Insert post anchors into the wet concrete.
• Allow to Cure: Let the concrete cure for at least 24 hours before proceeding.

Step 3: Setting Posts

Posts are vertical supports that transfer the weight of the deck to the footings. They should be made from pressure-treated lumber for durability.

• Cut Posts to Length: Measure and cut the posts to the desired height, accounting for the thickness of the beams and decking.
• Attach to Anchors: Secure the posts to the post anchors using galvanized bolts or screws.
• Ensure Plumb: Use a level to ensure the posts are plumb (vertically level) and adjust as needed.

Step 4: Installing Beams

Beams run horizontally between the posts and support the joists. They are typically made from doubled-up 2x lumber or engineered beams.

• Measure and Cut Beams: Cut the beams to the required length.
• Attach to Posts: Secure the beams to the posts using galvanized bolts or brackets.
• Check for Level: Ensure the beams are level and make any necessary adjustments.

Step 5: Installing Joists

Joists are horizontal supports that run perpendicular to the beams and support the decking boards. They are typically spaced 16 inches apart, center-to-center.

• Measure and Cut Joists: Cut the joists to length, allowing for any overhangs if desired.
• Install Joist Hangers: Attach joist hangers to the beams at the appropriate spacing.
• Secure Joists: Place the joists into the hangers and secure them with galvanized nails or screws.

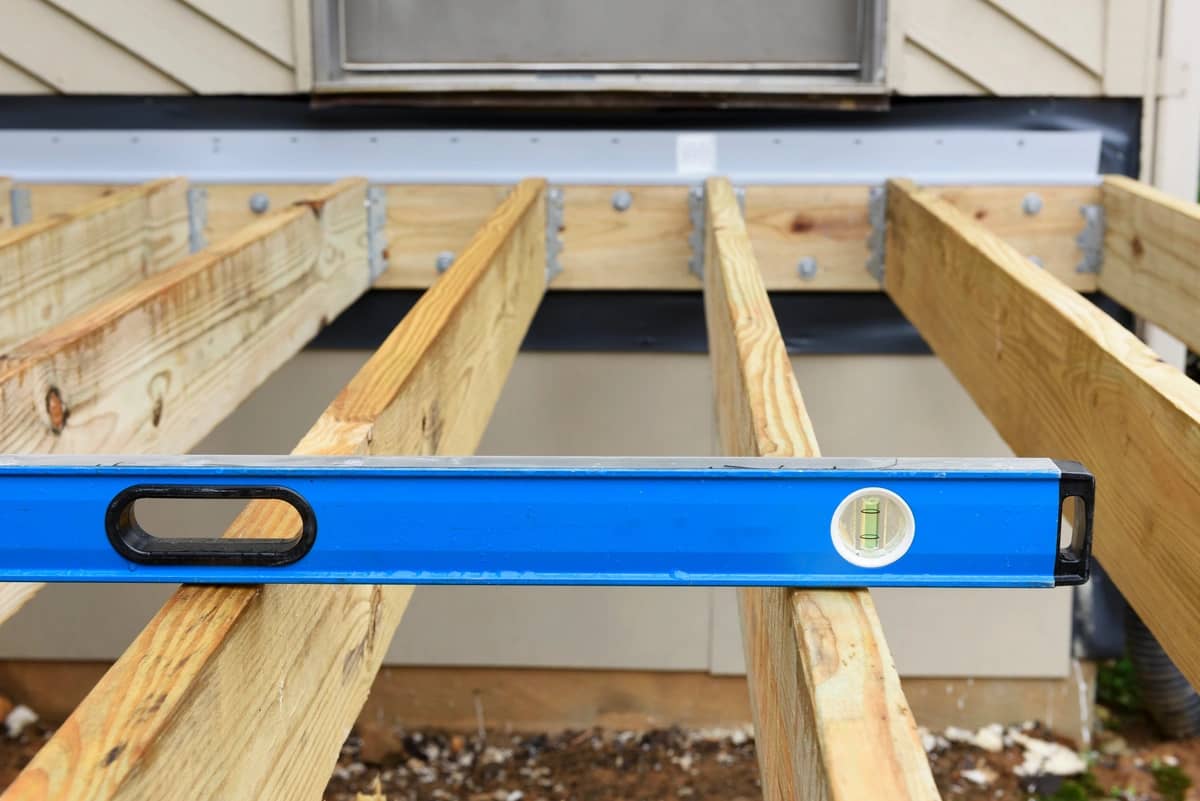

• Check for Level: Ensure the tops of the joists are level and adjust as needed.

Step 6: Adding Blocking and Bridging

Blocking and bridging provide additional support and prevent the joists from twisting. They are especially important for larger decks.

• Measure and Cut Blocking: Cut pieces of lumber to fit snugly between the joists.
• Install Blocking: Place the blocking between the joists at mid-span or intervals specified by your building code.
• Secure Bridging: If using bridging, install it in a zigzag pattern between the joists and secure with nails or screws.

Step 7: Attaching Rim Joists

Rim joists run around the perimeter of the deck, connecting the ends of the joists and adding stability.

• Measure and Cut Rim Joists: Cut the rim joists to length.
• Attach to Joists: Secure the rim joists to the ends of the floor joists using galvanized nails or screws.
• Ensure Square: Double-check that the deck frame is square and make any final adjustments.

Step 8: Installing Decking Boards

With the frame complete, you can now install the decking boards. Choose boards made from wood, composite, or PVC, depending on your preference and budget.

• Start at the Edge: Begin installing the decking boards at one edge of the deck, leaving a slight gap between boards for drainage.
• Secure Boards: Use galvanized screws or hidden fasteners to secure the boards to the joists.
• Check for Alignment: Periodically check that the boards are aligned and adjust as needed.
• Continue Across Deck: Continue installing the boards until you reach the other edge of the deck.
• Trim Overhang: If necessary, trim any overhanging boards to create a clean, finished edge.

Step 9: Finishing Touches

Finally, add any finishing touches to enhance the appearance and functionality of your deck.

• Install Railings: If your deck is higher than 30 inches off the ground, most building codes require railings. Install them according to the manufacturer’s instructions.
• Add Stairs: If your deck includes stairs, construct and install them now.
• Apply Sealant or Stain: Protect your deck from the elements by applying a sealant or stain.

Common Deck Framing Mistakes to Avoid

Even with careful planning and execution, mistakes can happen. Here are some common deck framing mistakes and how to avoid them:

• Inadequate Footings: Ensure footings are large enough and deep enough to support the weight of the deck.
• Incorrect Joist Spacing: Follow local building codes and manufacturer recommendations for joist spacing.
• Using the Wrong Fasteners: Use galvanized or stainless steel fasteners to prevent rust and corrosion.
• Not Checking for Level: Continuously check that the frame is level to ensure a smooth decking surface.
• Ignoring Building Codes: Always follow local building codes to ensure your deck is safe and legal.
